ASV Capture Arms (With Support Stand)

Home / Dental / Accessories / ASV Capture Arms / ASV Capture Arms (With Support Stand)

Recommended Use

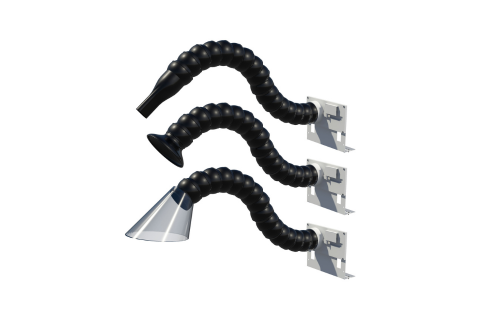

ASV Capture Arms (With Support Stand)

Airflow control AND remotely start/stop dust collector at each workstation. Connect several ASVs to one dust collector to accommodate multiple workstations.

ASV Capture Arms (With Support Stand)

Capture Arm w/ ASV Capture Arm

» Slide Valve opens and closes for a dual purpose: Controls suction by blocking airflow at idle workstations Remotely switches dust collector on and off at each workstation
» Connect as many ASVs as needed to one dust collector
» Dust collector will remain on as long as one valve is open
» REAR COLLAR DIAMETERS CAN VARY (1.5 in, 2 in, 2.5 in or 3 in)
» Included: Inlet Nozzle (see table below), Table-Stand Support Bracket (#AA423), 25 ft long cable
» Optional: Cable to connect to unit (#AE750) (1 cable per unit)

Specification	Value
Shipping Weight:	2 lb (1 kg)

Part Number Selection Guide		Front Diameter 3″
Part Number Selection Guide		8″ Plexi Nozzle	4″ Round Nozzle	1.5″ Oval Nozzle
Rear Diameter	1.5″	AA433P-A31-20	AA433-A31-20	AA4330-A31-20
	2″	AA433P-A32-20	AA433R-A32-20	AA4330-A32-20
	2.5″	AA433P-A35-20	AA433R-A35-20	AA4330-A35-20
	3″	AA433P-A33-20	AA433R-A33-20	AA4330-A33-20

Quatro ASV Capture Arms Brochure

No data available.
