ASV - Auto Start Valve (Without Support Stand)

Recommended Use

Part Number: See Technical Specifications

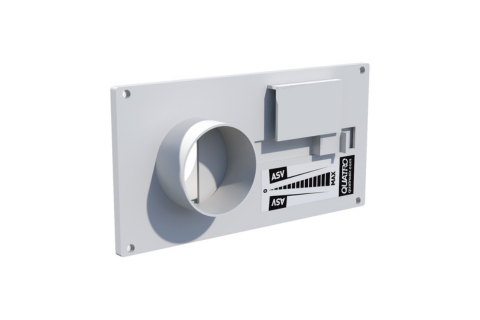

ASV – Auto Start Valve (Without Support Stand)

Airflow control AND remotely start/stop dust collector at each workstation. Connect

Automatic Slide Valves (ASV) Machine Interface

Part Number: See Technical Specifications

» Slide Valve opens and closes for a dual purpose: Controls suction by blocking airflow at idle workstations Remotely switches dust collector on and off at each workstation
» Connect as many ASVs as needed to one dust collector. Dust collector will remain on as long as one valve is open
» Clamp or bolt ASVs directly to workbench
» FRONT AND REAR COLLAR DIAMETERS CAN VARY (1.5 in, 2 in, 2.5 in or 3 in)
» Included: 25 ft cable (10 ft cable also available)
» Optional: Table-Stand Support Bracket (#AA423), Cable to connect to unit (#AE750) (1 cable per unit)

Specification	Value
Dimensions (HxWxL):	6.2×7.3×2.5 in (16x19x6 cm)
Shipping Weight:	2 lb (1 kg)

Part Number Selection Guide		Rear Diameter (20 ft cable)
Part Number Selection Guide		1.5″	2″	2.5″	3″
Front Diameter	1.5″	AA413-A11-20	AA413-A12-20	AA413-A15-20	AA413-A13-20
	2″	AA413-A21-20	AA413-A22-20	AA413-A25-20	AA413-A23-20
	2.5″	AA413-A51-20	AA413-A52-20	AA413-A55-20	AA413-A53-20
	3″	AA413-A31-20	AA413-A32-20	AA413-A35-20	AA413-A33-20
