4″ Main Filter
Part Number: F301
Quantity: One (1) 4″ replacement main filter for your Quatro Air unit.
High-performance debris removal system featuring dual infinity or single brushless high-speed motors with front-facing digital (iSeries) control panel.

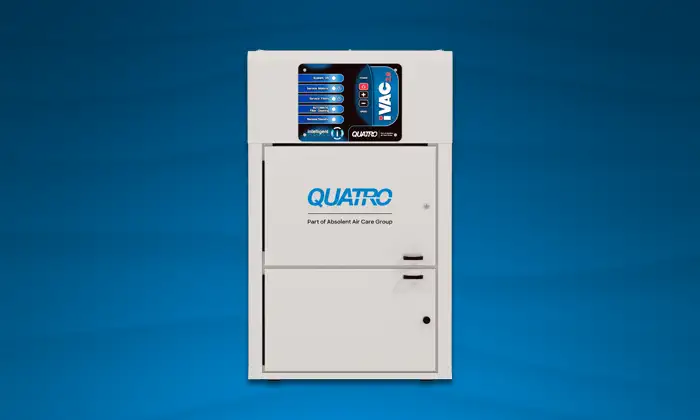

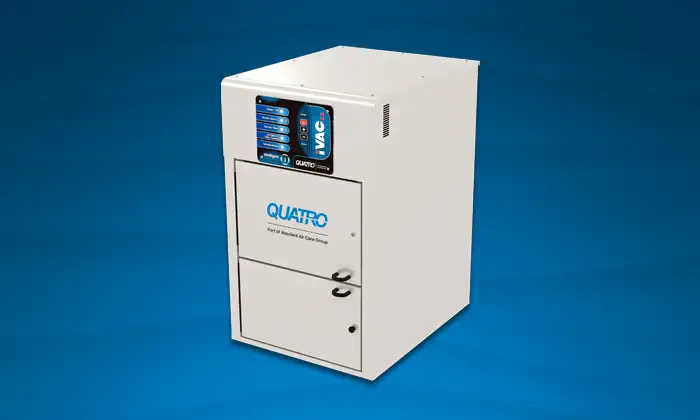

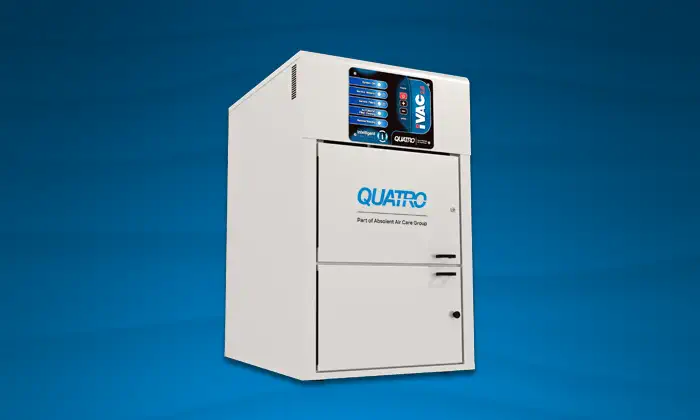

Powerful yet compact, the iVAC Twin Self-Cleaning HEPA Dust Collector is a highly-efficient debris removal system with minimal maintenance owing to its large dust holding tray. Featuring a small footprint, medical grade HEPA filter 99.97 efficient, high-speed motor, improved maintenance access, and quiet operation. Comes equipped with our digital iSeries control panel (variable speed control, visual status indicators and audible alarms for filter status) and your choice of dual Infinity or single Brushless motors.
| Product Number | Pressure | CFM | Volts/Phase/Hz | Amps | Shipping Weight | Width | Height | Depth | Noise (dB) | Max Debris Capacity (in3) | Filter Sequence | Filter Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-0052-0711 (Dual Infinity motors/Dual 2″ inlets) |
90″ WC | 282 | 120/1/60 | 12 | 90 lbs (41 kg) |
16″ | 26″ | 20″ | 52dB(A) | 1200 | • 4″ Main Filter F315 • 2″ HEPA Filter F074 |
• MERV 12 • MERV 17 |
| 1-0052-0712 (Dual Infinity motors/Single 4″ inlet) |
90″ WC | 282 | 120/1/60 | 12 | 90 lbs (41 kg) |
16″ | 26″ | 20″ | 52dB(A) | 1200 | • 4″ Main Filter F315 • 2″ HEPA Filter F074 |
• MERV 12 • MERV 17 |
| 1-0052-4711 (Single Brushless motor/Dual 2″ inlets) |
54″ WC | 220 | 120/1/60 | 12 | 90 lbs (41 kg) |
16″ | 26″ | 20″ | 52dB(A) | 1200 | • 4″ Main Filter F315 • 2″ HEPA Filter F074 |
• MERV 12 • MERV 17 |
| 1-0052-4712 (Single Brushless motor/Single 4″ inlet) |
54″ WC | 220 | 120/1/60 | 12 | 90 lbs (41 kg) |
16″ | 26″ | 20″ | 52dB(A) | 1200 | • 4″ Main Filter F315 • 2″ HEPA Filter F074 |
• MERV 12 • MERV 17 |
Learn how to get the most out of your Quatro Air unit and troubleshoot common problems. You can also download the owner’s manual for this unit for technical details and instructions.
Congratulations! You are now owner of a Quatro Air iVAC Twin Dust Collector, an advanced effective purifier designed specifically for the human respiratory system. You can expect a noticeable improvement in air quality as the unit begins the process of reducing microscopic airborne particulate, dust, harmful gases, smoke, and pollen etc.
Keep all fastening hardware tight to ensure that the unit is in safe working condition. Familiarise yourself with the way in which filters are installed & replaced. All filters must be in place whenever this machine is in operation. Use only on a grounded electrical circuit; do not use any two-wire electrical prong adapters to defeat proper grounding. If servicing the unit, be careful not to touch the motor as soon as it has been turned off.
IMPORTANT: Ensure power supply is unplugged during maintenance or filter service
WARNING: Do not operate unit until you’ve confirmed all filters have been installed
Your unit comes equipped with a Service Filters light on the control panel. When this light is illuminated, it is recommened that you order new filters as soon as possible.
Reduced air flow is a common symptom of dirty filters.
There are a couple of reasons why your motor may randomly turn off:
Quantity: One (1) 4″ replacement main filter for your Quatro Air unit.
Quantity: One (1) 2″ replacement HEPA filter for your Quatro Air unit.
