SPB 100 Mini

Recommended Use

  • Ideal for use in dental laboratories
  • Ideal for use in optical laboratories
  • Ideal for use in jewelry manufacturing
Fume Extractors

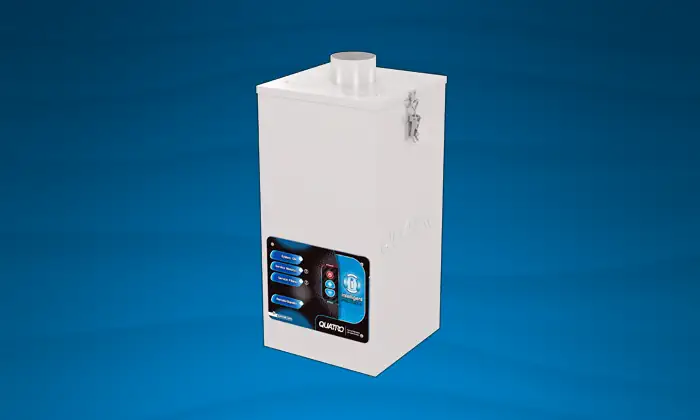

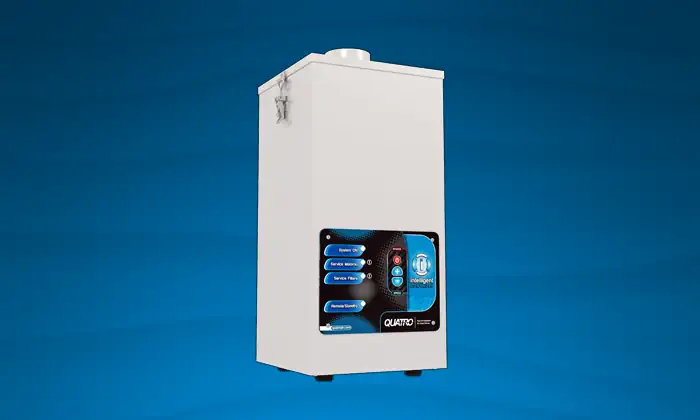

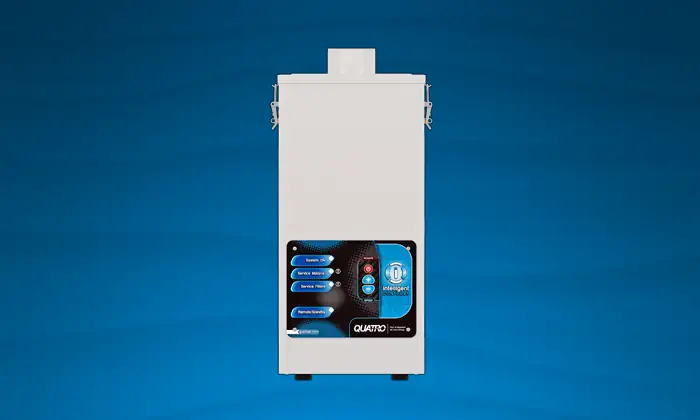

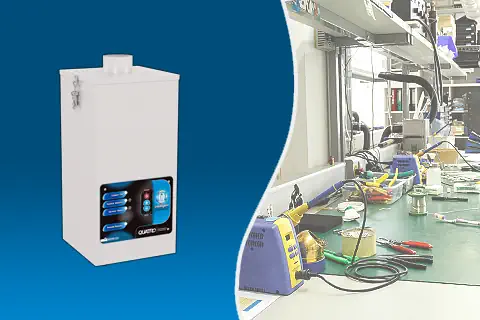

SPB 100 Mini

Low Profile Fume Extractor

Low profile, light duty solder fume extractor with HEPA cartridge and carbon wrap. Up to 100 CFM nominal airflow.

Overview

The SPB 100 Mini is low-profile, light duty solder fume extractor featuring a HEPA cartridge filter and carbon wrap. The SPB 100 Mini is powered by a medium pressure motorized brushless impeller and comes equipped with a multi-stage filtration system. The iSeries (digital) control panel features variable speed control, visual status indicators and audible alarms for filter status.

Benefits

  • Compact plug and play design
  • Small footprint
  • Whisper quiet operation
  • CSA-certified, UL and RoHS compliant

Features

  • Multi-stage filtration system
  • Motorized brushless impeller
  • iSeries (digital) control panel

Options

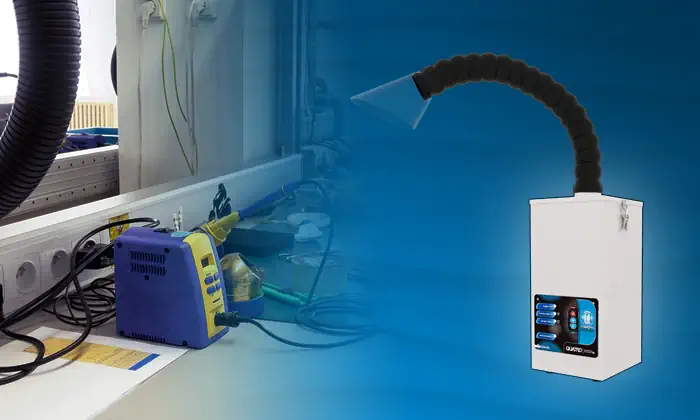

  • Hose or mounted source capture arm
  • Remote foot switch
  • Remote hand switch
Product Number Control Panel Pressure CFM Volts/Phase/Hz Amps Shipping Weight Width Height Depth Noise (dB) Filter Sequence Filter Efficiency
1-0363-0701
(6 ft LD hose/Dual 3″ inlets)		 iSeries (digital) 2″ WC 100 120/1/60 2 37 lbs
(17 kg)		 9″ 19″ 9″ 52dB(A) • 2.5” HEPA Cartridge Filter F264
• Carbon Wrap AG246		 • MERV 17
• MERV 8
1-0363-0702
(AA006 Source capture arm/Dual 3″ inlets)		 iSeries (digital) 2″ WC 100 120/1/60 2 37 lbs
(17 kg)		 9″ 19″ 9″ 52dB(A) • 2.5” HEPA Cartridge Filter F264
• Carbon Wrap AG246		 • MERV 17
• MERV 8

Learn how to get the most out of your Quatro Air unit and troubleshoot common problems. You can also download the owner’s manual for this unit for technical details and instructions.

Owner’s Manual

Quatro Air SPB 100 Mini Fume Extractor Owner’s Manual

How to Set Up Your Unit for the First Time

introduction

Congratulations! You are now owner of a Quatro Air SPB 100 Mini Fume Extractor, an advanced effective indoor dust and fume collection system designed specifically to remove particulate matter and odour causing gas phase contaminants at the source. You can expect a noticeable improvement in air quality as the SPB 100 Mini system begins the process of reducing microscopic airborne particulate.



Safety Precaution

Keep all fastening hardware tight to ensure that the unit is in safe working condition. Familiarise yourself with the way in which filters are installed & replaced. All filters must be in place whenever this machine is in operation. Use only on a grounded electrical circuit; do not use any two-wire electrical prong adapters to defeat proper grounding. If servicing the unit, be careful not to touch the motor as soon as it has been turned off. It is hot and can cause injury.

IMPORTANT: Ensure power supply is unplugged during maintenance or filter service

Pre Start-Up Checklist

  1. Upon arrival, inspect unit for either visible or concealed damage. Damage should be immediately reported to the transport company.
  2. All filters are present and are correctly installed prior use
  3. Labels and serial numbers are present for future identification
  4. Verify that power supply is compatible with equipment. Check the unit is plugged into a grounded receptacle
  5. The casters (wheels) must be secure in place prior the moving the unit

Start-Up

WARNING: Do not operate unit until you’ve confirmed all filters have been installed

  1. Place the unit in the desired area for use. Ensure all filters are installed (remove all plastic wrapping)
  2. Make sure the air intake area (bottom) is not obstructed in any way
  3. Insert male end of power cord into grounded circuit
  4. Press RED POWER BUTTON, unit will start, press “+” or “-“ to switch speed “HIGHER” or “LOWER”
  5. Unit should now be functioning and operational
When to Replace Your Filters

Your unit comes equipped with a Service Filters light on the control panel. When this light is illuminated, it is recommened that you order new filters as soon as possible.
Reduced air flow is a common symptom of dirty filters.

Unit Will Not Start



Suggested Solutions:

  • Make sure the power cord is properly connected into the unit and the wall outlet
  • Check the breaker box
  • HEPA filter improperly installed
  • Check the fuse on the unit and replace if blown
  • Power supply may be faulty – replace power supply
Unit Has Insufficient Airflow

Suggested Solutions:

  • Check the system for obstructions and if any exist, remove them
  • Replace the filters if they are clogged or ful
Unit Has Excessive Airflow

Suggested Solutions:

  • Make sure the filter(s) are properly installed

2.5″ HEPA Cartridge Filter

Part Number: F264

Quantity: One (1) 2.5″ replacement HEPA Cartridge filter for your Quatro Air unit.
