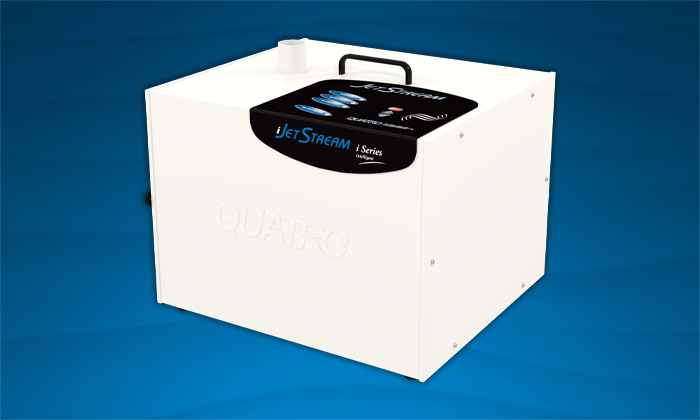

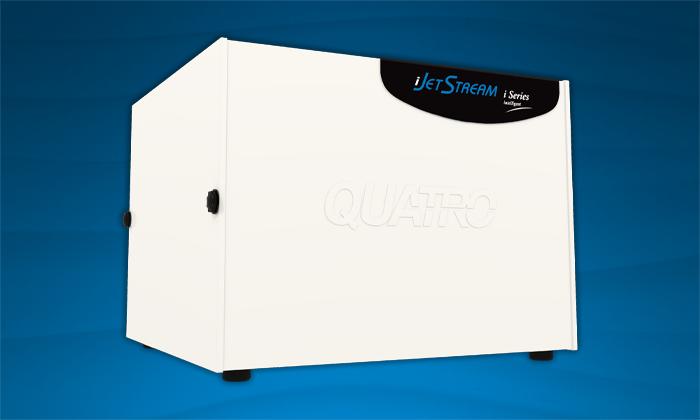

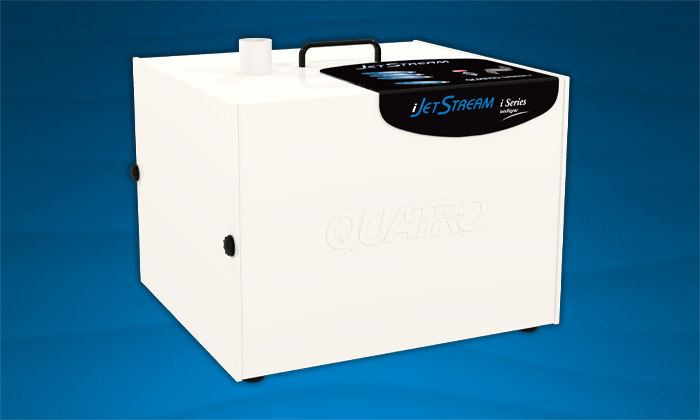

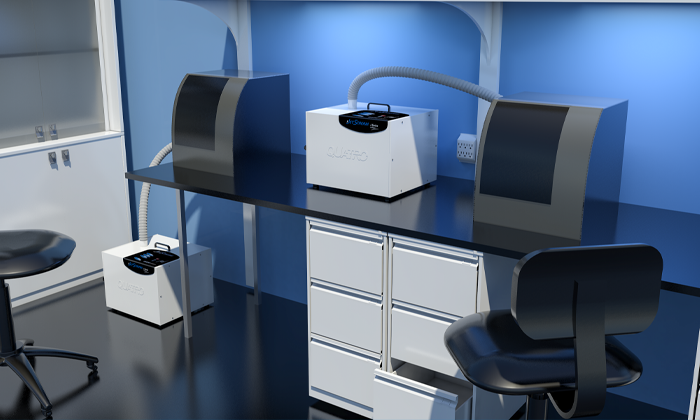

Numéro de pièce: JHL-5293

JetStream CadCam

Usage léger – 1 à 2 heures par jour.

Extracteur de poussière automatique de type sac, sans allergènes, avec filtre HEPA pour applications de fraisage léger – comprend un câble d’interface spécifique pour le moulin et un filtre HEPA.

Accessoires proposés

  • Filtres à haute capacité, sans danger pour les allergies, pour capturer/contenir en toute sécurité de grandes quantités de débris.
  • Filtre HEPA, 99,97 % d’efficacité sur les particules submicroniques telles que les fines poussières de zircone dans l’usinage CAD/CAM
  • Modèle portable
  • Filtres/moteurs accessibles par les côtés
  • Indicateur de pression de sac plein
  • AUTOFLOW : Réglé à la vitesse minimale acceptable, les moteurs maintiennent le débit d’air malgré l’augmentation de la pression.
  • Temporaire ON : Nettoyez votre moulin pendant que l’appareil est en mode veille.
  • Les moteurs hybrides INFINITY offrent une durée de vie prolongée.
  • Solution économique et discrète
  • Également inclus : Câble de démarrage et d’arrêt automatique spécifique à l’usine et tuyau d’aspiration de 6 pieds
  • En option : pédale/interrupteur manuel pour démarrage/arrêt manuel de 6 pieds (#AA175/#AA375), répartiteur de signal (#AA686) pour faire fonctionner l’unité avec le signal automatique ET la pédale (pour un nettoyage rapide et facile du broyeur).
Specification Value
Dimensions (H x W x L): 13.5 x 16 x 12.25 in (34x41x36 cm)
Shipping Weight: 39 lb (18 kg)
Power: 100-120 V, 50/60 Hz, 8 A
Sound Level: 55 dB(A)
Filters: AG328-02 (2/box, larger quantities available
at price discounts), F191S
Motor: Infinity AR175 (1/box)

Learn how to get the most out of your Quatro Air unit and troubleshoot common problems. You can also download the owner’s manual for technical details and instructions.

Owner’s Manual

Quatro Air JetStream Widebody Dust Collector Owner’s Manual

How to Set Up Your Unit for the First Time

Introduction

Congratulations! You are now owner of a Quatro JetStream Widebody dust collector; an efficient unit engineered to capture and contain airborne particulate generated by your application. As soon as the unit starts to operate, you will notice an improvement in air quality.

Safety Precaution

Keep all fastening hardware tight to ensure that the unit is in safe working condition. Familiarize yourself with the way in which filters are installed & replaced. All filters must be in place whenever this machine is in operation. Use only on a grounded electrical circuit; do not use any two-wire electrical prong adapters to defeat proper grounding. If servicing the unit, be careful not to touch the motor as soon as it has been turned off. It is hot and can cause injury. Do not substitute any of the unit’s filters with aftermarket products, as it will alter the design characteristics and possibly void the warranty.

IMPORTANT: Ensure power supply is unplugged during maintenance or filter service

Pre Start-Up Checklist

  1. Upon arrival, inspect unit for either visible or concealed damage. Damage should be immediately reported to the transport company
  2. Remove the filters from their plastic wrapping and install them in the correct order (if multiple filters) as described in the owner’s manual

Start-Up

WARNING: Do not operate unit until you’ve confirmed all filters have been installed

  1. Connect 1 1/2″ diameter hose to inlet on top of unit
  2. Connect other end of your hose to your accessory (debris source)
  3. Connect the power cord to both Dust Collector / Purifier Control Panel and 115-volt wall outlet
  4. Start unit by pressing the red power button (digital control panels) or by switching the toggle power switch to On position
When to Replace Your Filters

When you notice a significant drop in suction, or, if the unit is equipped with a digital control panel, when the Service filter light turns on, it is time to service the filters. Do not try to clean and reuse the filters as this will result in tear. If you need replacements, order new filters.

Unit Will Not Start

Suggested Solutions:

  • Make sure the power cord is properly connected into the unit and the wall outlet
  • Check the breaker box
  • Check the fuse on the unit and replace if blown
Unit Has Insufficient Airflow

Suggested Solutions:

  • Check the system for obstructions and if exist, remove them
  • Replace the filters if they are clogged or full
Unit Has Excessive Airflow

Suggested Solutions:

  • Check the system for obstructions and if exist, remove them
  • Replace the filters if they are clogged or full

1″ HEPA Filter

Numéro de pièce : F191S

Quantity: One (1) 1″ replacement HEPA filter for your Quatro Air unit.

Spare Filter Bags

Numéro de pièce : AG328-02

Infinity Motor 120V

Numéro de pièce : AR175

Replacement Motor 120V
