Airflow control AND remotely start/stop dust collector at each workstation. Connect several ASVs to one dust collector to accommodate multiple workstations.

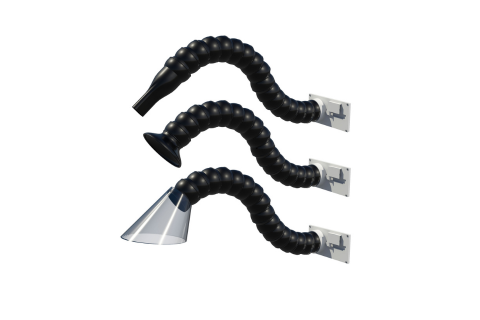

ASV Capture Arms (Without Support Stand)
Capture Arm w/ ASV Capture Arm
» Slide Valve opens and closes for a dual purpose: Controls suction by blocking airflow at idle workstations Remotely switches dust collector on and off at each workstation
» Connect as many ASVs as needed to one dust collector
» Dust collector will remain on as long as one valve is open
» REAR COLLAR DIAMETERS CAN VARY (1.5 in, 2 in, 2.5 in or 3 in)
» Included: Inlet Nozzle (see table below), 25 ft long cable
» Optional: Cable to connect to unit (#AE750) (1 cable per unit)
| Specification | Value |
| Shipping Weight: | 2 2 lb (1 kg) |
| Part Number Selection Guide | Front Diameter 3″ | |||
| 8″ Plexi Nozzle | 4″ Round Nozzle | 1.5″ Oval Nozzle | ||
| Rear Diameter | 1.5″ | AA413P-A31-20 | AA413-A31-20 | AA43130-A31-20 |
| 2″ | AA413P-A32-20 | AA4313R-A32-20 | AA43130-A32-20 | |
| 2.5″ | AA413P-A35-20 | AA4133R-A35-20 | AA43130-A35-20 | |
| 3″ | AA413P-A33-20 | AA4133R-A33-20 | AA41330-A33-20 | |
