Introduction

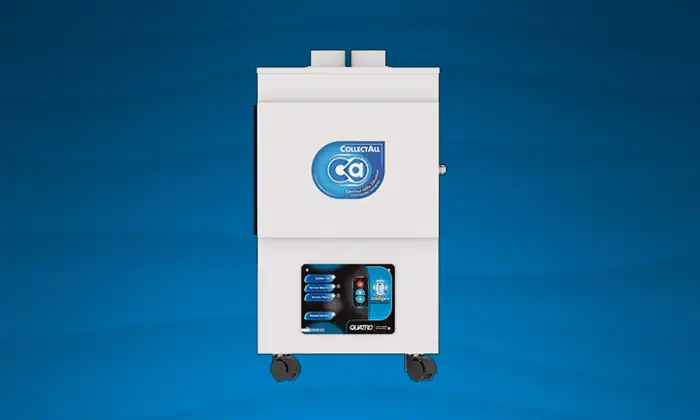

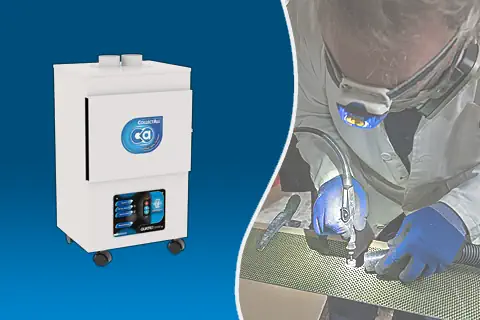

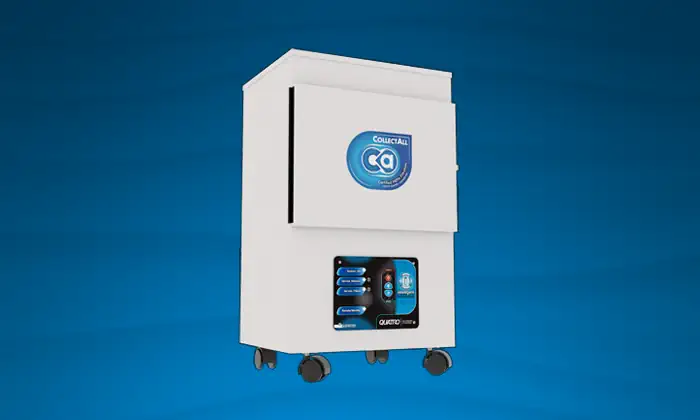

Congratulations! You are now owner of a Quatro Air CollectALL Fume Extractor, an advanced effective indoor dust and fume collection system designed specifically to remove particulate matter and odour causing gas phase contaminants at the source. You can expect a noticeable improvement in air quality as the CollectALL system begins the process of reducing microscopic airborne particulate.

Safety Precaution

Keep all fastening hardware tight to ensure that the unit is in safe working condition. Familiarise yourself with the way in which filters are installed & replaced. All filters must be in place whenever this machine is in operation. Use only on a grounded electrical circuit; do not use any two-wire electrical prong adapters to defeat proper grounding. If servicing the unit, be careful not to touch the motor as soon as it has been turned off. It is hot and can cause injury.

IMPORTANT: Ensure power supply is unplugged during maintenance or filter service

Pre Start-Up Checklist

1. Upon arrival, inspect unit for either visible or concealed damage. Damage should be immediately reported to the transport company.
2. All filters are present and are correctly installed prior use
3. Labels and serial numbers are present for future identification
4. Verify that power supply is compatible with equipment. Check the unit is plugged into a grounded receptacle
5. The casters (wheels) must be secure in place prior the moving the unit

Start-Up

WARNING: Do not operate unit until you’ve confirmed all filters have been installed

1. Place the unit in the desired area for use. Ensure all filters are installed (remove all plastic wrapping)
2. Make sure the air intake area (bottom) is not obstructed in any way
3. Insert male end of power cord into grounded circuit
4. Press RED POWER BUTTON, unit will start, press “+” or “-“ to switch speed “HIGHER” or “LOWER”
5. Unit should now be functioning and operational

Your unit comes equipped with a Service Filters light on the control panel. When this light is illuminated, it is recommened that you order new filters as soon as possible.
Reduced air flow is a common symptom of dirty filters.

Suggested Solutions:

• Make sure the power cord is properly connected into the unit and the wall outlet
• Check the breaker box
• HEPA filter improperly installed
• Check the fuse on the unit and replace if blown
• Power supply may be faulty – replace power supply

Suggested Solutions:

• Check the system for obstructions and if any exist, remove them
• Replace the filters if they are clogged or ful

Suggested Solutions:

• Make sure the filter(s) are properly installed
