Desktop Containment System

1-877-978-2876

Home / Products / Fume Extractors / Stand Alone Units / Desktop Containment System

← Back to Fabrication Additive / Impression 3D Applications

Recommended Use

Ideal for use in dental laboratories
Ideal for use in optical laboratories
Ideal for use in jewelry manufacturing

Part Number: DCS16-GED1

Desktop Containment System

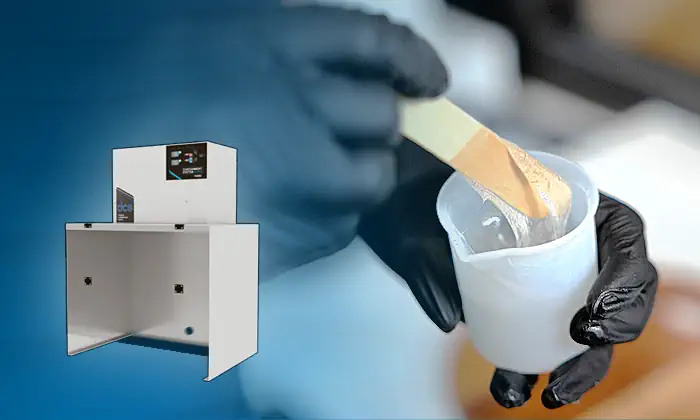

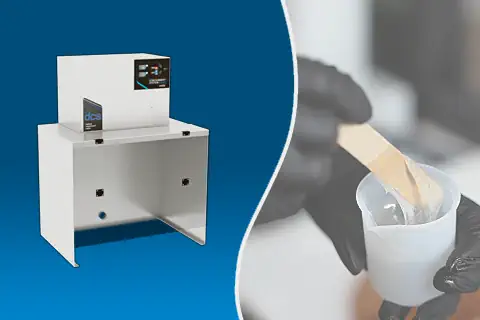

Investment Mixing

The Desktop Containment System (DCS) Fume Extractor Series offers both small and large enclosures to effectively eliminate fumes, odors and dust at source

Overview

The Desktop Containment System (DCS) Series of fume extractors offers both small and large enclosures to effectively eliminate fumes, odors and dust at source, preventing airborne contaminates from entering your breathing zone and spreading throughout your facility.

REQUEST A QUOTE

Benefits

Compact plug and play design
Ideal where floor space is limited
Captures airborne contaminants at source
Whisper quiet operation
CSA-certified, UL and RoHS compliant

Features

iSeries (digital) control panel
LED illuminated interior
Variable speed control

Options

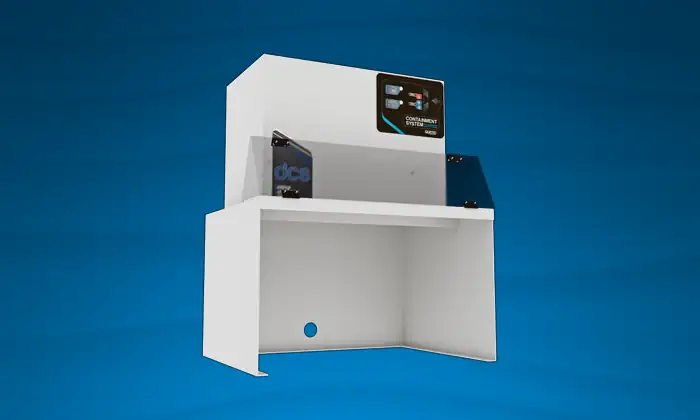

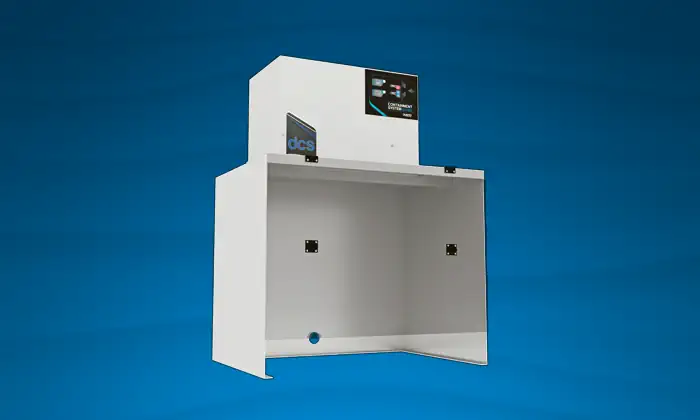

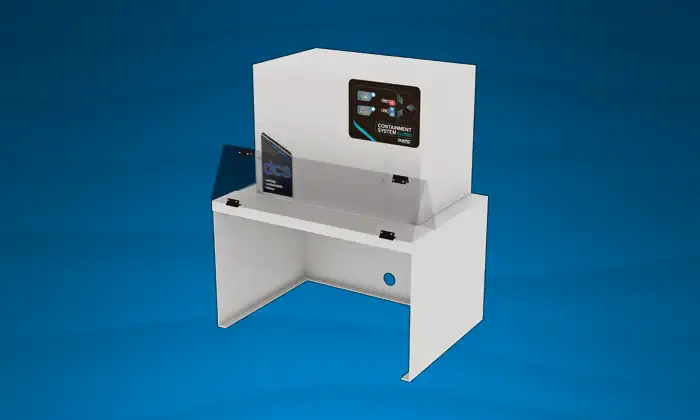

Small or large enclosure
Multiple filter sequence configurations. Please see Technical Specifications

Product Number	Model	Pressure	CFM	Volts/Phase/Hz	Amps	Shipping Weight	Width	Height	Depth	Noise (dB)	Filter Sequence	Filter Efficiency
1-0045-0701	DCS Small Enclosure (Dust/Odors)	2″ WC	160	120/1/60	2	78 lbs (36 kg)	24″	29″	18″	59dB(A)	• 2” Pleated Dust Filter F071 • 2” Carbon Filter AG372-GPC (2x) • 2” HEPA Filter F074	• MERV 10 • N/A • MERV 17
1-0045-0702	DCS Small Enclosure (Odors Only)	2″ WC	160	120/1/60	2	78 lbs (36 kg)	24″	29″	18″	59dB(A)	• 2” Carbon Filter AG372-GPC (2x) • 2” HEPA Filter F074	• N/A • MERV 17
1-0045-0703	DCS Small Enclosure (Dust Only)	2″ WC	160	120/1/60	2	78 lbs (36 kg)	24″	29″	18″	59dB(A)	• 2” Pleated Dust Filter F071 • 2” HEPA Filter F074	• MERV 10 • MERV 17
1-0045-0711	DCS Large Enclosure (Dust/Odors)	2″ WC	160	120/1/60	2	98 lbs (45 kg)	29″	39″	20″	59dB(A)	• 2” Pleated Dust Filter F071 • 2” Carbon Filter AG372-GPC (2x) • 2” HEPA Filter F074	• MERV 10 • N/A • MERV 17
1-0045-0712	DCS Large Enclosure (Odors Only)	2″ WC	160	120/1/60	2	98 lbs (45 kg)	29″	39″	20″	59dB(A)	• 2” Carbon Filter AG372-GPC (2x) • 2” HEPA Filter F074	• N/A • MERV 17
1-0045-0713	DCS Large Enclosure (Dust Only)	2″ WC	160	120/1/60	2	98 lbs (45 kg)	29″	39″	20″	59dB(A)	• 2” Pleated Dust Filter F071 • 2” HEPA Filter F074	• MERV 10 • MERV 17

Learn how to get the most out of your Quatro Air unit and troubleshoot common problems. You can also download the owner’s manual for this unit for technical details and instructions.

Owner’s Manual

Quatro Air Desktop Containment System Series Owner’s Manual

Unit Makes Excessive Noise

Suggested Solutions:

Blower wheel may be contacting cone – realign or replace the wheel
Fan isolators may be loose or off – replace isolator

Unit Will Not Start

Suggested Solutions:

Make sure the power cord is properly connected into the unit and the wall outlet
Inspect supply grille for blockage and remove any obstructions
Check the fuse on the unit and replace if blown
Power supply may be faulty – check breaker box

Unit Has Insufficient Airflow

Suggested Solutions:

Check the system for obstructions and if any exist, remove them
Replace the filters if they are clogged or full
If you need replacements but don’t have any, order new filters

Unit Has Excessive Airflow

Suggested Solutions:

Make sure the filter(s) are properly installed

2″ Pleated Filters

Part Number: F071-BX

Quantity: Six (6) Box of six 2″ replacement pleated filters for your Quatro Air unit.

2″ HEPA Filter 99.97%

Part Number: F074

Quantity: One (1) 2″ replacement HEPA filter for your Quatro Air unit.

2″ Carbon Filter

Part Number: F072-GPC

Quantity: One (1) 2″ replacement carbon filter for your Quatro Air unit.
