Downdraft Station DDS

Recommended Use

  • Ideal for use in dental laboratories
  • Ideal for use in optical laboratories
  • Ideal for use in jewelry manufacturing
Stand Alone Units

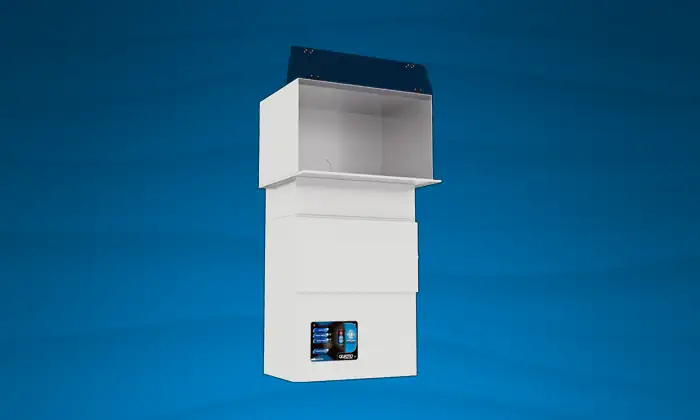

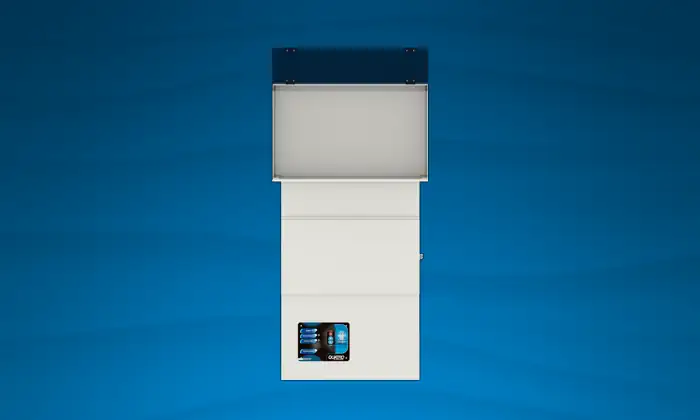

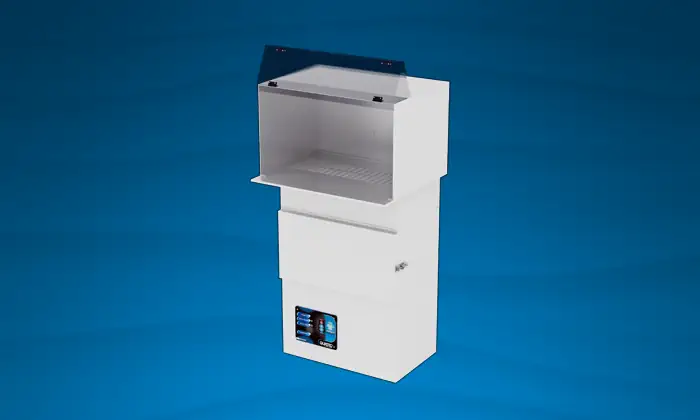

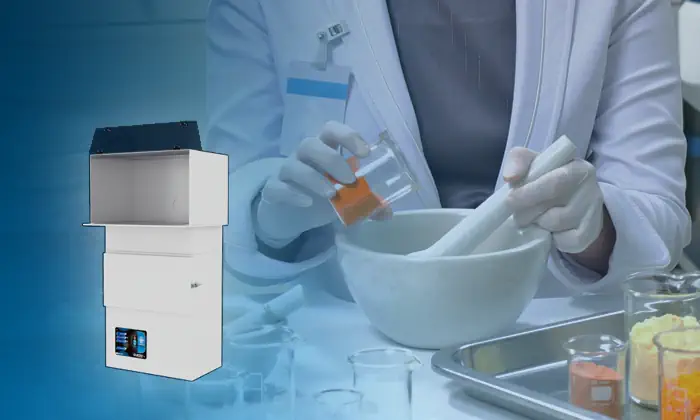

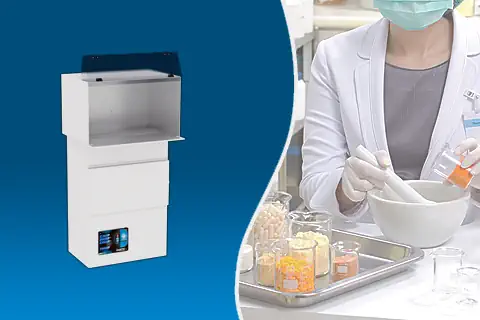

Downdraft Station DDS

Stand Alone Fume Extractors

Featuring a multi-stage filtration system, the Downdraft Station DDS removes harmful particles from the work area and helps maintain a clean and healthy workplace.

Overview

Powered by an ultra-quiet brushless motor and a multi-stage filtration system, the Downdraft Station DDS fume extractor series removes harmful particles from the work area and helps you maintain a clean and healthy workplace.

For restricted spaces, the low profile configuration allows the system’s containment hood to be installed on the workbench and connected to the top or back of the multi-stage filtration unit via flexible hose.

Benefits

  • Compact plug and play design
  • Small footprint
  • Captures airborne contaminants at source
  • Whisper quiet operation
  • CSA-certified, UL compliant

Features

  • ClearView containment hood

Options

  • Small or large formats
  • Analog or digital (iSeries) control panel
  • Low profile configuration



Product Number Model Pressure CFM Volts/Phase/Hz Amps Shipping Weight Width Height Depth Noise (dB) Filter Sequence Filter Efficiency
1-0031-0781 DDS Small Downdraft Station (Analog) 4″ WC 600 120/1/60 10 145 lbs
(66 kg)		 29.5″ 59″ 20″ 59dB(A) • 2” Pleated Dust Filter F007
• 6” HEPA Filter F357		 • MERV 10
• MERV 17
1-0031-0782 DDS HP Small Downdraft Station (iSeries) 54″ WC 220 120/1/60 12 145 lbs
(66 kg)		 29.5″ 59″ 20″ 59dB(A) • 2” Pleated Dust Filter F007
• 6” HEPA Filter F357		 • MERV 10
• MERV 17
1-0031-0783 DDS Large Downdraft Station (Analog) 4″ WC 600 120/1/60 10 145 lbs
(66 kg)		 29.5″ 59″ 20″ 59dB(A) • 2” Pleated Dust Filter F007
• 6” HEPA Filter F357		 • MERV 10
• MERV 17
1-0031-0784 DDS HP Large Downdraft Station (iSeries) 54″ WC 220 120/1/60 12 145 lbs
(66 kg)		 29.5″ 59″ 20″ 59dB(A) • 2” Pleated Dust Filter F007
• 6” HEPA Filter F357		 • MERV 10
• MERV 17

Learn how to get the most out of your Quatro Air unit and troubleshoot common problems. You can also download the owner’s manual for this unit for technical details and instructions.

Owner’s Manual

Quatro Air Downdraft Station DDS Series Owner’s Manual

Unit Makes Excessive Noise

Suggested Solutions:

  • Blower wheel may be contacting cone – realign or replace the wheel
  • Fan isolators may be loose or off – replace isolato
Unit Will Not Start

Suggested Solutions:

  • Make sure the power cord is properly connected into the unit and the wall outlet
  • Inspect supply grille for blockage and remove any obstructions
  • Check the fuse on the unit and replace if blown
  • Power supply may be faulty – check breaker box
Unit Has Insufficient Airflow

Suggested Solutions:

  • Check the system for obstructions and if any exist, remove them
  • Replace the filters if they are clogged or full
    If you need replacements but don’t have any, order new filters
Unit Has Excessive Airflow

Suggested Solutions:

  • Make sure the filter(s) are properly installed

2″ Pleated Filters

Part Number: F071-BX

Quantity: Six (6) Box of six 2″ replacement pleated filters for your Quatro Air unit.

6″ HEPA Filter

Part Number: F022

6″ replacement HEPA filter for your Quatro Air unit.
